Front Stabilizer Link Removal & Installation: Installation

1. Stabilizer Link - Install

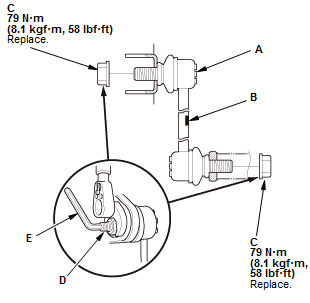

Fig 1: Stabilizer Link Replacement Components With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Install the stabilizer link (A).

NOTE: The stabilizer link has a paint mark (B). Align the paint mark on the stabilizer link facing rearward

2. Install the flange nuts (C), and tighten them to the specified torque while holding the respective joint pin (D) with a hex wrench (E).
2. Front Wheel - Install
3. Test Drive - Check
1. Test-drive the vehicle.

4. After 5 minutes of driving, tighten the flange nut again to the specified torque.
