Rear Damper/Spring Removal & Installation: Removal

Courtesy of HONDA, U.S.A., INC.

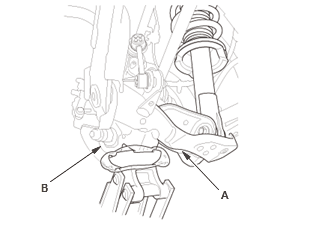

1. Position a floor jack at the connecting point of the trailing arm (A) and the knuckle (B)

2. Raise the floor jack until the suspension begins to compress.

1. Disconnect the stabilizer link from the trailing arm.

Courtesy of HONDA, U.S.A., INC.

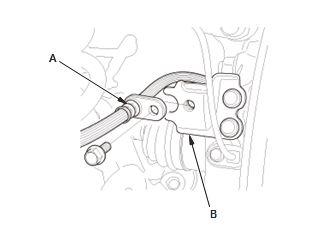

1. Remove the brake hose (A) from the brake hose mounting bracket (B).

Courtesy of HONDA, U.S.A., INC.

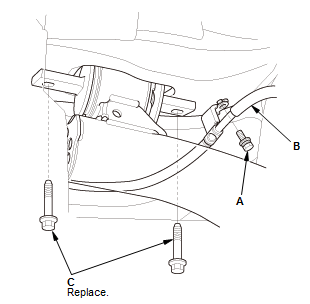

2. Remove the flange bolt (A), then remove the parking brake cable (B) 3. Remove the trailing arm rear mounting bolts (C).

Courtesy of HONDA, U.S.A., INC.

1. Fold down the rear seat-back

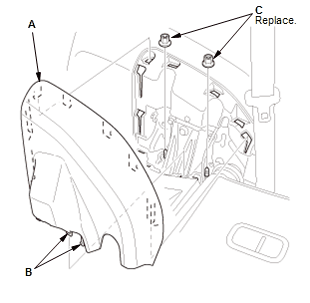

2. Pull up the rear damper maintenance cover (A) by hand to detach the hooks (B), then remove the rear damper maintenance cover

3. Remove the flange nuts (C) from the top of damper.

Courtesy of HONDA, U.S.A., INC.

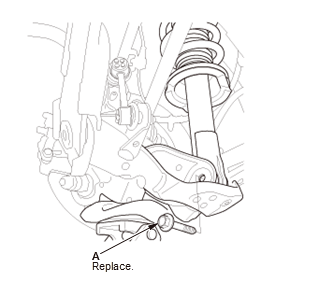

4. Remove the damper mounting bolt (A).

Courtesy of HONDA, U.S.A., INC.

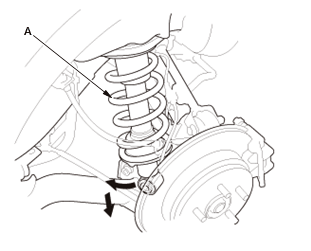

5. Lower the rear suspension, then remove the damper/spring (A) from the vehicle. NOTE:  Be careful not to damage the body.
