Rear Stabilizer Link Removal & Installation: Installation

1. Stabilizer Link - Install

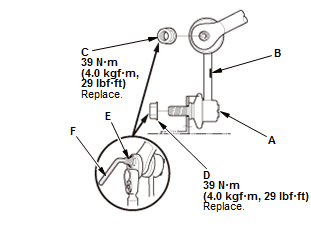

Fig 1: Stabilizer Link Replacement Components With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Install the stabilizer link (A).

NOTE: The stabilizer link has a paint mark (B). Align the paint mark facing rearward

2. Install a new self-locking nut (C) and a new flange nut (D), and tighten them to the specified torque while holding the respective joint pin (E) with a hex wrench (F).
2. Rear Wheel - Install
3. Test Drive - Check
1. Test-drive the vehicle

4. After 5 minutes of driving, tighten the self-locking nut again to the specified torque.
