Removal & Installation

Courtesy of HONDA, U.S.A., INC.

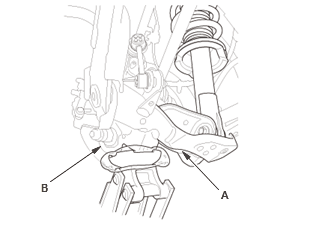

1. Position a floor jack at the connecting point of the trailing arm (A) and the knuckle (B)

2. Raise the floor jack until the suspension begins to compress.

Courtesy of HONDA, U.S.A., INC.

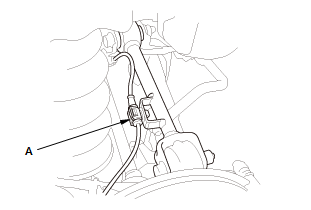

1. Remove the wheel speed sensor harness bracket (A).

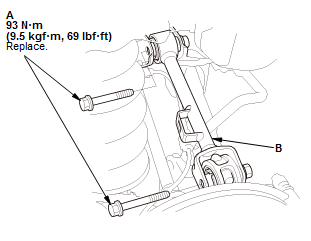

Fig 1: Upper Arm & Flange Bolts With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

2. Remove the flange bolts (A), and remove the upper arm (B).

NOTE:  Use new flange bolts during reassembly.

NOTE:  Loosely install nuts and/or bolts to install the bushings, load the suspension with the vehicle's weight, and then tighten the nuts and/or bolts to the specified torque.
