Brake Hose Removal & Installation: Removal

Courtesy of HONDA, U.S.A., INC.

Do not spill brake fluid on the vehicle; it may damage the paint. If brake fluid gets on the paint, wash it off immediately with water.

NOTE:  After removal, plug the ends of the hoses and the joints to prevent spilling brake fluid.

Front

• 1. Vehicle - Lift
• 2. Front Wheel - Remove
• 3. Brake Hose - Remove

  Courtesy of HONDA, U.S.A., INC.

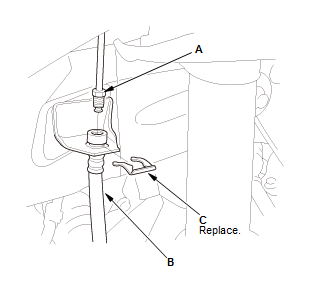

  1. Disconnect the brake line (A) from the brake hose (B)

  2. Remove the brake hose clip (C).

  Courtesy of HONDA, U.S.A., INC.

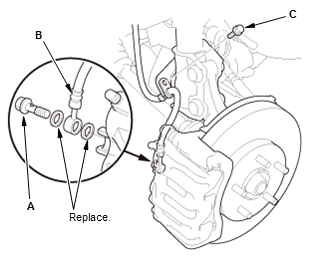

  3. Remove the banjo bolt (A), and disconnect the brake hose (B) from the caliper body 4. Remove the brake hose mounting bolt (C) 5. Remove the brake hose.

  Rear

• 1. Vehicle - Lift
• 2. Rear Wheel - Remove
• 3. Brake Hose - Remove

  Courtesy of HONDA, U.S.A., INC.

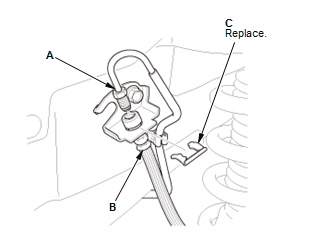

  1. Disconnect the brake line (A) from the brake hose (B)

  2. Remove the brake hose clip (C).

  Courtesy of HONDA, U.S.A., INC.

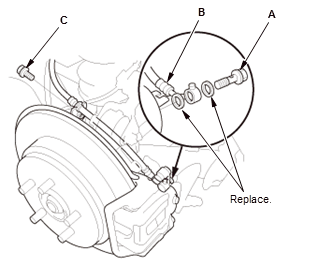

  3. Remove the banjo bolt (A), and disconnect the brake hose (B) from the caliper body 4. Remove the brake hose mounting bolt (C) 5. Remove the brake hose.
