Navigation System Diagnostic Mode(With Display Audio): LaneWatch

LaneWatch

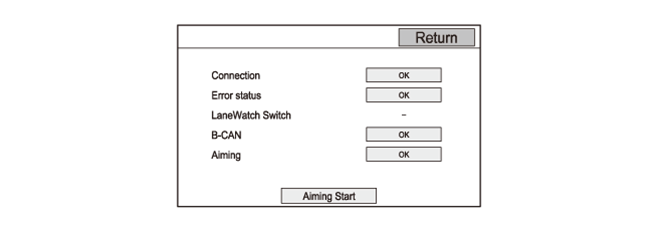

This diagnosis checks the LaneWatch status.

• If Connection shows NG, check for hard error codes .
• Error Status: Indicates LaneWatch camera status OK or NG. If Error Status shows NG, replace the LaneWatch camera . When the LaneWatch camera is disconnected, the status shows hyphen (-).
• If Error Status shows OK, press the HOME button to display the LaneWatch camera image. To return to the previous screen, press the HOME button again.
• LaneWatch Switch: LaneWatch switch status on or off. When the LaneWatch switch is pressing, the status shows ON. When the LaneWatch switch is released, the status shows hyphen (-).
• B-CAN: Checks whether the audio-navigation unit has received specific B-CAN data from the MICU. If B-CAN shows NG, check for B-CAN DTCs with the HDS. If DTCs are not detected, check for B-CAN lines continuity between the audio-navigation unit and the MICU.
• If Connection, Error Status, LaneWatch Switch, and B-CAN shows OK, the LaneWatch camera aiming procedure is available. If the LaneWatch camera need to aiming, refer to the LaneWatch Camera Aiming . When the aiming fails, Aiming shows NG.
