Seat Heater Removal and Installation: Replacement

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Front Seat Cushion Heater

• 1. Front Seat Cushion Cover/Pad - Remove
• 2. Front Seat Cushion Heater - Remove

  Courtesy of HONDA, U.S.A., INC.

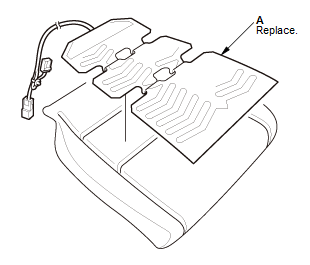

  1. Remove the seat cushion heater (A).

  NOTE:  The seat cushion heater is glued to the seat cushion pad. When removing it, take care not to damage the seat cushion pad.

• 3. All Removed Parts - Install - Install the parts in the reverse order of removal.

  Front Seat-Back Heater

• 1. Front Seat-Back Cover/Pad - Remove
• 2. Front Seat-Back Heater - Remove

  Courtesy of HONDA, U.S.A., INC.

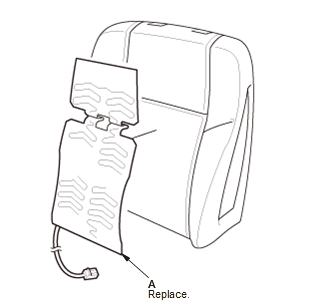

  1. Remove the seat-back heater (A).

  NOTE:  The seat-back heater is glued to the seat-back pad. When removing it, take care not to damage the seat-back pad.

• 3. All Removed Parts - Install - Install the parts in the reverse order of removal.
