CVT Differential Oil Seal Replacement: Replacement

NOTE:

• Apply a light coat of clean transmission fluid on all parts before installation.
• Unless otherwise indicated, illustrations used in the procedure are for AWD/4WD.

Transmission Housing Side

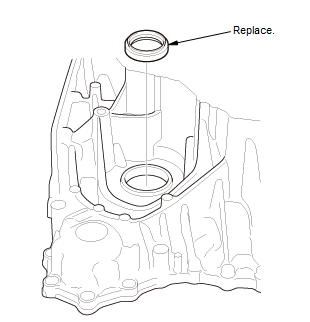

• 1. Differential Oil Seal - Remove

  Courtesy of HONDA, U.S.A., INC.

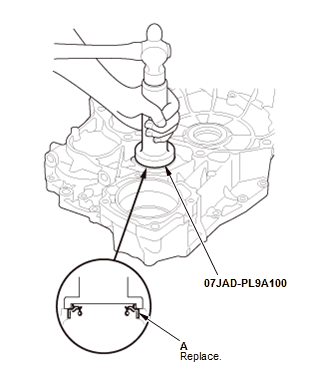

• 2. Differential Oil Seal - Install

  Courtesy of HONDA, U.S.A., INC.

  1. Install a new oil seal (A) flush with the transmission housing using the 15 x 135L driver handle and the oil seal driver attachment.

  Torque Converter Housing Side

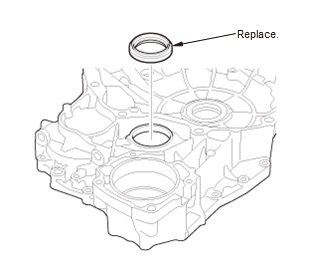

• 1. Differential Oil Seal - Remove

  Courtesy of HONDA, U.S.A., INC.

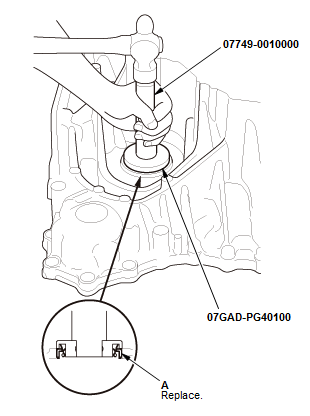

• 2. Differential Oil Seal - Install

  Courtesy of HONDA, U.S.A., INC.

  1. Install a new oil seal (A) flush with the torque converter housing using the 65 mm oil seal driver.
