Removal & Installation

NOTE:  Keep all foreign particles out of the transmission.

• 1. Vehicle - Lift
• 2. Splash Shield- Remove
• 3. CVT Driven Pulley Pressure Sensor - Remove

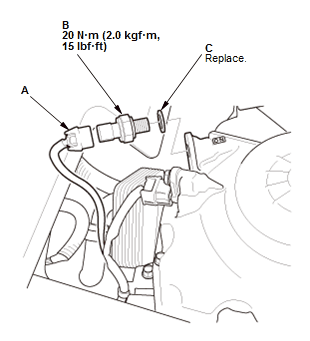

  Fig 1: CVT Driven Pulley Pressure Sensor With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  1. Disconnect the connector (A).

  NOTE:  Check the connector for corrosion, dirt, or oil, and clean or repair if necessary

  2. Remove the CVT driven pulley pressure sensor(B) with the sealing washer(C).

  NOTE:  Be careful not to damage the plastic part.

• 4. All Removed Parts - Install the parts in the reverse order of removal.

  NOTE:

  • Be sure to use a new sealing washer when installing the CVT driven pulley pressure sensor.
  • Be careful not to damage the plastic part when installing the CVT driven pulley pressure sensor.
