CVTF Warmer Hose Removal & Installation: Removal

1. Vehicle - Lift
2. HDS DLC - Connect
3. SCS - Short
1. Turn the vehicle to the OFF (LOCK) mode

2. Jump the SCS line with the HDS, and wait more than 1 minute.
4. Engine Coolant - Drain
5. Air Cleaner - Remove
6. 12 Volt Battery - Remove
7. Intake Air Pipe - Remove
8. PCM with Bracket - Remove

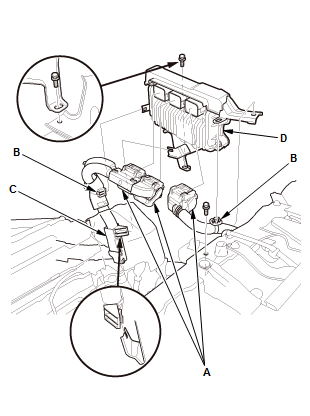

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connectors (A) .

2. Remove the harness clamps (B) and the harness holder (C).

3. Remove the PCM (D) with the bracket.
9. 12 Volt Battery Base - Remove

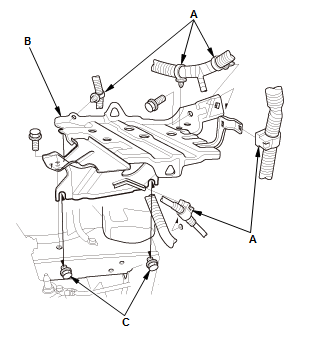

Courtesy of HONDA, U.S.A., INC.

1. Remove the harness clamps (A)

2. Remove the battery base (B).

NOTE: Loosen the bolts (C), without removing them.
10. Transmission Fluid Warmer Hose - Disconnect

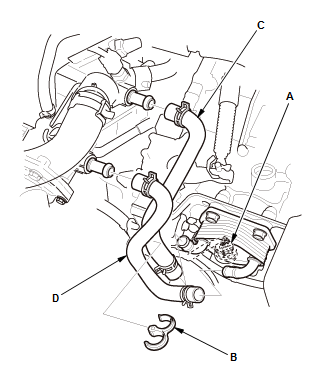

Courtesy of HONDA, U.S.A., INC.

NOTE: To prevent damage, cover the solenoid wire harness A connector (A) using a shop towel.

1. Remove the hose clamp (B)

2. Disconnect the transmission fluid warmer inlet hose (C) and outlet hose (D).

NOTE: Be careful not to damage the transmission fluid warmer when disconnecting the transmission fluid warmer hoses.
