CVTF Warmer Hose Removal & Installation: Installation

Courtesy of HONDA, U.S.A., INC.

NOTE:

• To prevent damage, cover the solenoid wire harness A connector (A) using a shop towel.
• When installing the hose clips, make sure they do not interfere with the surrounding parts.

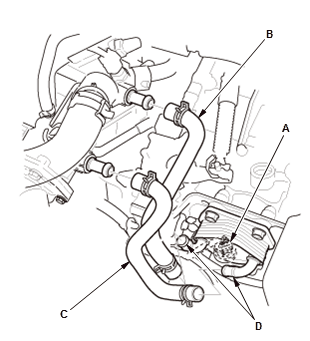

1. Connect the transmission fluid warmer inlet hose (B) and outlet hose (C) until each bulge (D) of the transmission fluid warmer line.

NOTE:  Be careful not to damage the transmission fluid warmer when connecting the transmission fluid warmer hoses.

Courtesy of HONDA, U.S.A., INC.

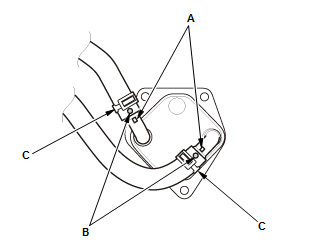

2. Align the black paint marks (A) on the transmission fluid warmer lines with the white paint marks (B) on the transmission fluid warmer hose ends 3. Secure the transmission fluid warmer hoses with the clamps (C).

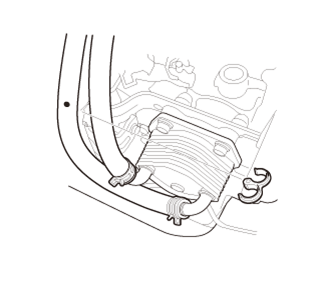

Courtesy of HONDA, U.S.A., INC.

4. Install the hose clamp 5. Clean up any spilled engine coolant.

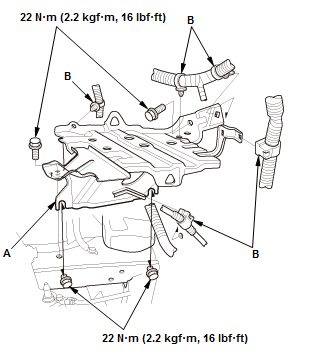

Fig 1: Battery Base With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Install the battery base (A)

2. Install the harness clamps (B).

Courtesy of HONDA, U.S.A., INC.

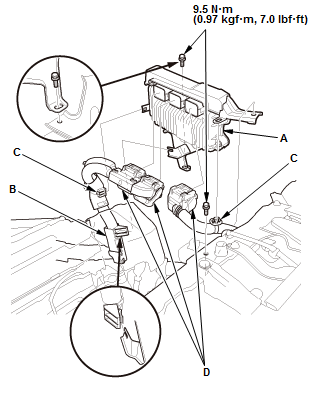

1. Install the PCM (A) with the bracket.

2. Install the harness holder (B) and the harness clamps (C).

3. Connect the connectors (D) .
