CVTF Warmer Removal & Installation: Removal

NOTE:  Keep all foreign particles out of the transmission.

• 1. Vehicle - Lift
• 2. Splash Shield- Remove
• 3. Engine Coolant - Drain
• 4. Transmission Fluid Warmer - Remove

  Courtesy of HONDA, U.S.A., INC.

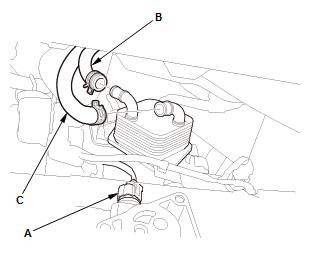

  NOTE:  To prevent damage, cover the solenoid wire harness A connector (A) using a shop towel.

  1. Disconnect the transmission fluid warmer inlet hose (B) and outlet hose (C).

  NOTE:  Be careful not to damage the transmission fluid warmer when disconnecting the transmission fluid warmer hoses.

  Courtesy of HONDA, U.S.A., INC.

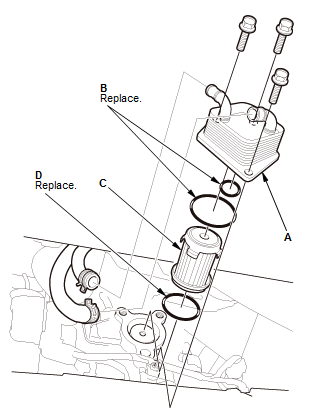

  2. Remove the transmission fluid warmer (A) with the O-rings (B). NOTE:  The transmission fluid warmer is aluminum part. Check the transmission fluid warmer for wear and damage 3. Remove the transmission fluid warmer strainer (C) with the O-ring (D) 4. Check the transmission fluid warmer strainer for damage or clogging. If it is damaged or clogged, replace it. NOTE:  Do not use compressed air to clean the transmission fluid warmer strainer.
