CVTF Warmer Removal & Installation: Installation

NOTE: Keep all foreign particles out of the transmission.

1. Transmission Fluid Warmer - Install

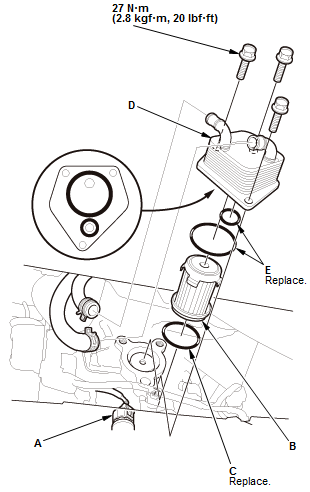

Fig 1: Transmission Fluid Warmer With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

NOTE:

To prevent damage, cover the solenoid wire harness A connector (A) using a shop towel.
When installing the hose clips, make sure they do not interfere with the surrounding parts.

1. Clean the mounting surfaces of the transmission housing

2. Install the transmission fluid warmer strainer (B) with a new O-ring (C)

3. Install the transmission fluid warmer (D) with new O-rings (E).

NOTE: The transmission fluid warmer is aluminum part. Check the transmission fluid warmer for wear and damage.

Courtesy of HONDA, U.S.A., INC.

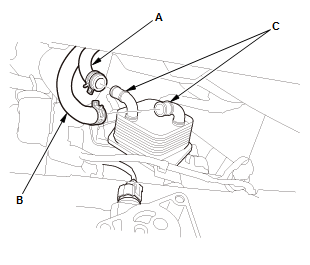

4. Connect the transmission fluid warmer inlet hose (A) and outlet hose (B) until each bulge (C) of the transmission fluid warmer line.

NOTE: Be careful not to damage the transmission fluid warmer when connecting the transmission fluid warmer hoses.

Courtesy of HONDA, U.S.A., INC.

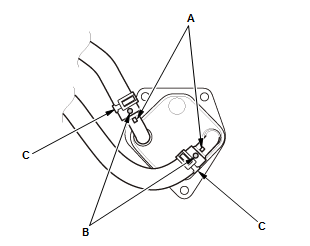

5. Align the black paint marks (A) on the transmission fluid warmer lines with the white paint marks (B) on the transmission fluid warmer hose ends

6. Secure the transmission fluid warmer hoses with the clamps (C).
