End Cover Driven Pulley Shaft Bearing Replacement: Replacement

Courtesy of HONDA, U.S.A., INC.

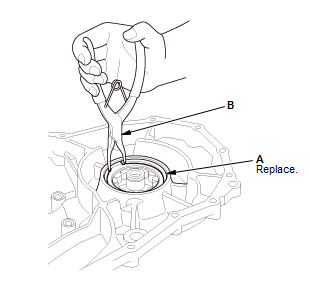

1. Remove the snap ring (A) using commercially available snap ring pliers for inner type (B).

Courtesy of HONDA, U.S.A., INC.

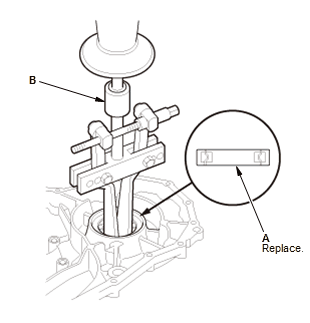

2. Remove the driven pulley shaft bearing (A) using a commercially available bearing puller (B).

Courtesy of HONDA, U.S.A., INC.

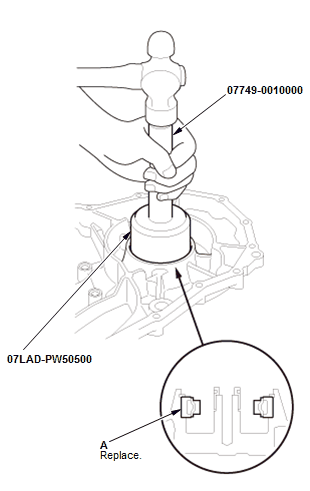

1. Drive a new driven pulley shaft bearing (A) until it bottoms using the 15 x 135L driver handle and the 70 mm attachment.

Courtesy of HONDA, U.S.A., INC.

2. Install a new snap ring (A) using the commercially available snap ring pliers for inner type (B). NOTE:  Be careful not to deform the snap ring by opening/closing it excessively. Make sure the snap ring is firmly installed in the groove.
