Shift Cable Removal & Installation: Removal

1. Turn the vehicle to the OFF (LOCK) mode

2. Jump the SCS line with the HDS, and wait more than 1 minute.

Courtesy of HONDA, U.S.A., INC.

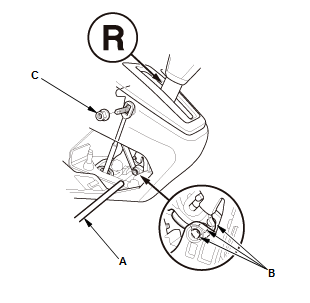

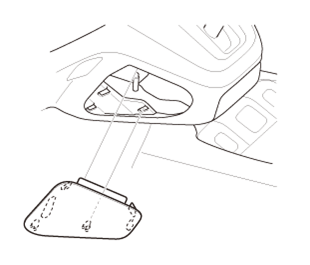

1. Shift the transmission to R position/mode

2. Insert a 6.0 mm (0.236 in) pin (A) into the positioning holes (B).

NOTE:  Use only a 6.0 mm (0.236 in) pin with no burrs

3. Remove the shift cable end nut (C).

Courtesy of HONDA, U.S.A., INC.

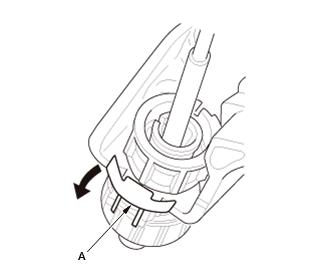

4. Unlock the retainer lock (A).

Courtesy of HONDA, U.S.A., INC.

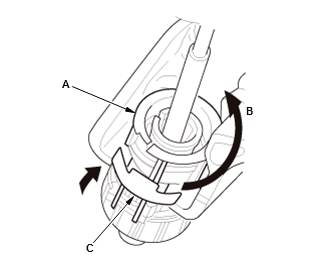

5. Rotate the socket holder retainer (A) in arrow direction (B) until it stops, and push the retainer lock (C) into the socket holder retainer to lock the retainer.

Courtesy of HONDA, U.S.A., INC.

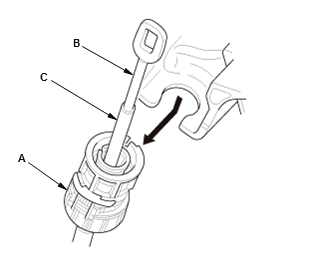

6. Slide the socket holder (A) away as shown to remove the shift cable (B). NOTE:  Do not remove the shift cable by pulling the shift cable guide (C).

Courtesy of HONDA, U.S.A., INC.

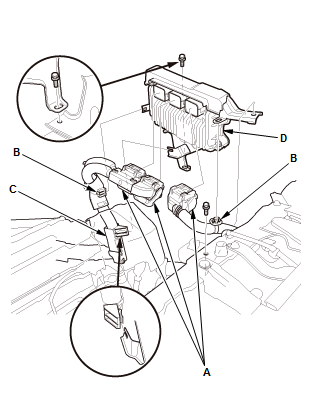

1. Disconnect the connectors (A) .

2. Remove the harness clamps (B) and the harness holder (C).

3. Remove the PCM (D) with the bracket.

Courtesy of HONDA, U.S.A., INC.

NOTE:  Do not bend the shift cable excessively.

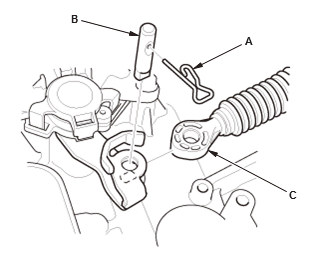

1. Remove the lock pin (A) and the control pin (B)

2. Remove the shift cable end (C).

Courtesy of HONDA, U.S.A., INC.

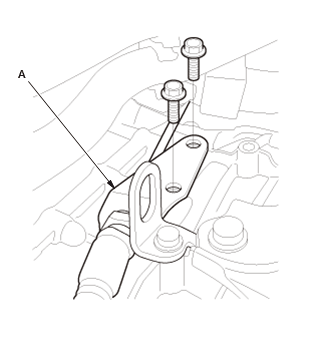

3. Remove the shift cable bracket (A).

Courtesy of HONDA, U.S.A., INC.

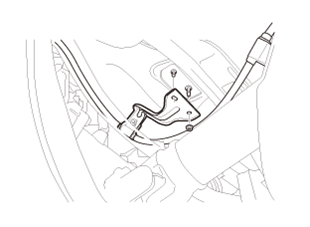

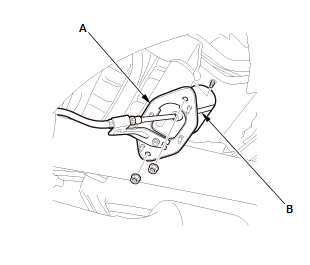

1. Remove the shift cable bracket.

Courtesy of HONDA, U.S.A., INC.

2. Remove the shift cable grommet (A) 3. Pull out the shift cable (B). NOTE:  Do not bend the shift cable excessively.
