Shift Lever Removal & Installation: Removal

1. Center Console - Remove
2. Shift Lever Panel - Remove

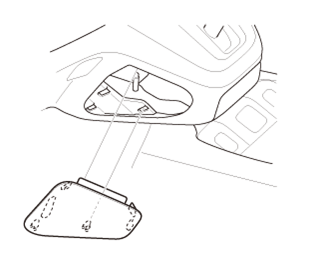

3. Center Maintenance Cover - Remove

Courtesy of HONDA, U.S.A., INC.

4. Shift Cable (Shift Lever Side) - Remove

Courtesy of HONDA, U.S.A., INC.

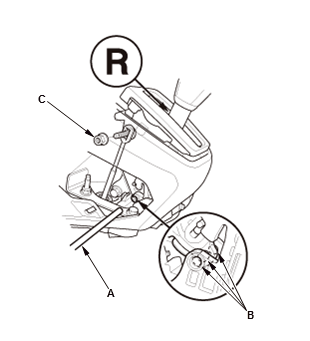

1. Shift the transmission to R position/mode

2. Insert a 6.0 mm (0.236 in) pin (A) into the positioning holes (B).

NOTE: Use only a 6.0 mm (0.236 in) pin with no burrs

3. Remove the shift cable end nut (C).

Courtesy of HONDA, U.S.A., INC.

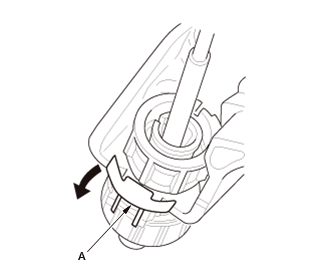

4. Unlock the retainer lock (A).

Courtesy of HONDA, U.S.A., INC.

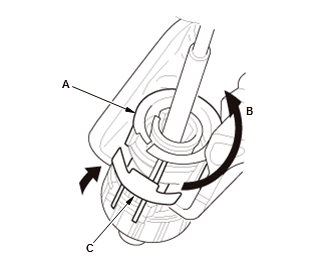

5. Rotate the socket holder retainer (A) in arrow direction (B) until it stops, and push the retainer lock (C) into the socket holder retainer to lock the retainer.

Courtesy of HONDA, U.S.A., INC.

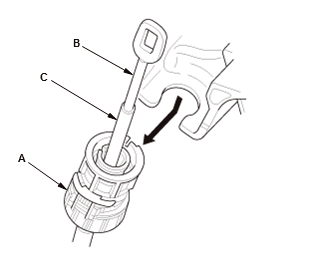

6. Slide the socket holder (A) away as shown to remove the shift cable (B).

NOTE: Do not remove the shift cable by pulling the shift cable guide (C).

5. Shift Lever - Remove

Courtesy of HONDA, U.S.A., INC.

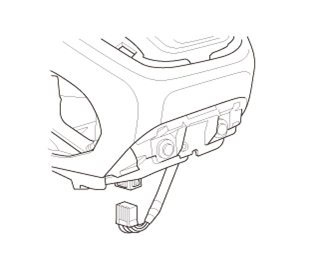

1. Disconnect the connector.

Courtesy of HONDA, U.S.A., INC.

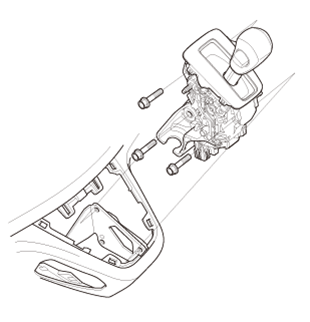

2. Remove the shift lever assembly.

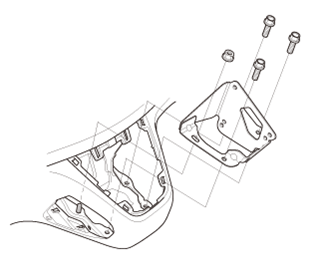

6. Shift Lever Bracket Base - Remove

Courtesy of HONDA, U.S.A., INC.
