Removal & Installation

NOTE:  Do not hold the shift solenoid valve O/P connector to remove the shift solenoid valve O/P. Be sure to hold the shift solenoid valve O/P body.

• 1. Transmission Fluid Pump - Remove

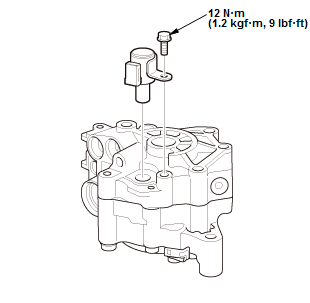

• 2. Shift Solenoid Valve O/P - Remove

  Courtesy of HONDA, U.S.A., INC.

  NOTE:  Do not hold the connector to remove the shift solenoid valve O/P. Be sure to hold the shift solenoid valve O/P body.

• 3. All Removed Parts - Install the parts in the reverse order of removal.

  NOTE:  Do not hold the connector to install the shift solenoid valve O/P. Be sure to hold the shift solenoid valve O/P body.
