Removal & Installation

NOTE:

• Keep all foreign particles out of the transmission.
• The solenoid wire harness A and the transmission fluid temperature sensor are not available separately. Replace them as a set.

• 1. Vehicle - Lift
• 2. Splash Shield- Remove

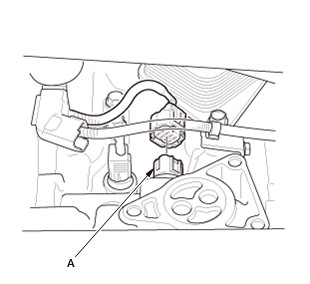

• 3. Solenoid Wire Harness A Connector - Disconnect

  Courtesy of HONDA, U.S.A., INC.

  NOTE:  To prevent damage, cover the connector (A) using a shop towel.

• 4. Lower Valve Body Assembly - Remove

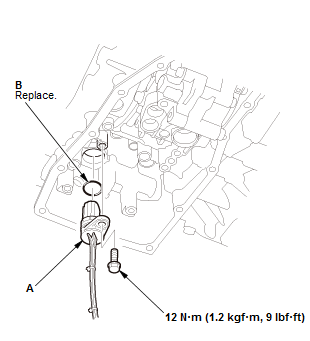

• 5. Solenoid Wire Harness A - Remove

  Courtesy of HONDA, U.S.A., INC.

  1. Remove solenoid wire harness A with the O-ring (B).

• 6. All Removed Parts - Install the parts in the reverse order of removal.

  NOTE:

  • Be sure to use a new O-ring when installing solenoid wire harness A.
  • Install solenoid wire harness A vertically to prevent damaging the O-ring.
