Removal & Installation

1. Lower Valve Body Assembly - Remove
2. Solenoid Wire Harness B - Remove

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

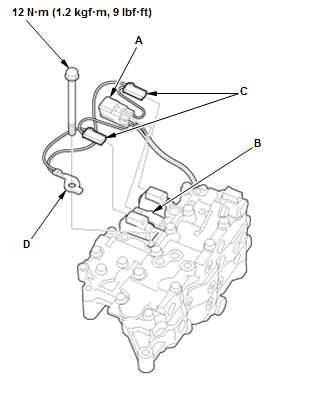

1. Remove the connector (A) from the harness bracket (B)

2. Disconnect these connectors (C)

3. Remove the ground terminal (D).
3. All Removed Parts - Install the parts in the reverse order of removal.
