Torque Converter Housing Oil Seal Replacement: Replacement

Courtesy of HONDA, U.S.A., INC.

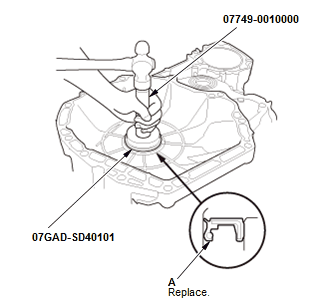

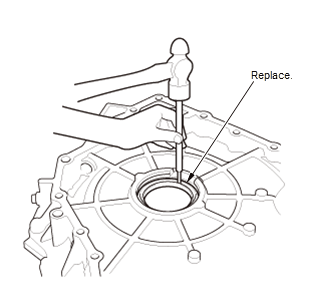

1. Install a new oil seal (A) flush with the torque converter housing using the 15 x 135L drive handle and the 78 x 90 mm attachment.
