Removal & Installation

NOTE:  Keep all foreign particles out of the transmission.

• 1. Vehicle - Lift
• 2. Splash Shield- Remove
• 3. Torque Converter Turbine Speed Sensor - Remove

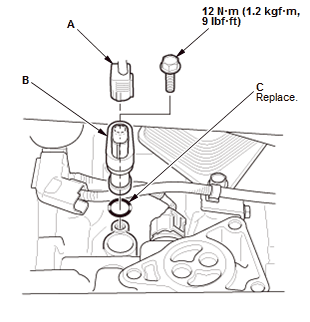

  Courtesy of HONDA, U.S.A., INC.

  1. Disconnect the connector (A).

  NOTE:  Check the connector for corrosion, dirt, or oil, and clean or repair if necessary.

  2. Remove the torque converter turbine speed sensor (B) with the O-ring (C).

• 4. All Removed Parts - Install the parts in the reverse order of removal.

  NOTE:  Be sure to use a new O-ring when installing the torque converter turbine speed sensor.
