Transmission Fluid Pan Removal & Installation: Installation

NOTE:  Keep all foreign particles out of the transmission.

• 1. Transmission Magnet Assembly - Install

  Courtesy of HONDA, U.S.A., INC.

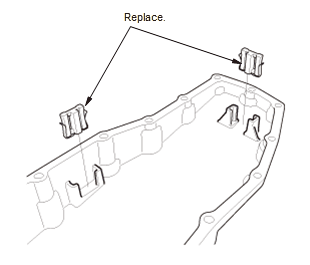

  NOTE:  When you remove the transmission magnet assembly, replace it with new magnets.

• 2. Transmission Fluid Pan - Install

  Courtesy of HONDA, U.S.A., INC.

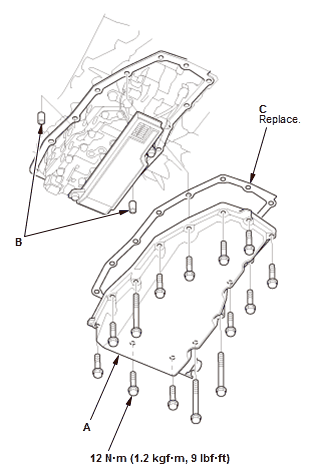

  1. Install the transmission fluid pan (A) with the dowel pins (B) and a new gasket (C), and tighten them in a crisscross pattern in at least two steps.

  NOTE:

  • Do not pinch the solenoid wire harnesses.
  • When you remove the oil pan, you must be careful about the transmission fluid (HCF-2) capacity for filling the transmission. Compared to the specified capacity, the actual transmission fluid (HCF-2) capacity can be increased by the elapsed time after removing the oil pan.
• 3. Splash Shield - Install
• 4. Transmission Fluid - Refill
• 5. Transmission Fluid Level - Check
