Removal & Installation

NOTE:  Keep all foreign particles out of the transmission.

• 1. Lower Valve Body Assembly - Remove
• 2. Transmission Fluid Pump - Remove

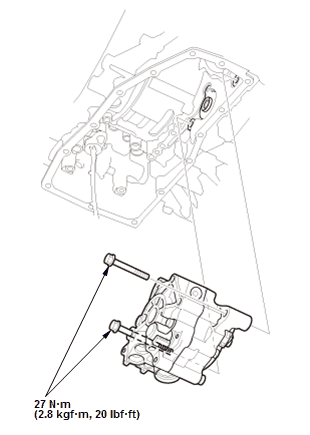

  Fig 1: Transmission Fluid Pump With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.
• 3. All Removed Parts - Install the parts in the reverse order of removal.

  NOTE:  Apply transmission fluid to the transmission fluid pump shaft splines.
