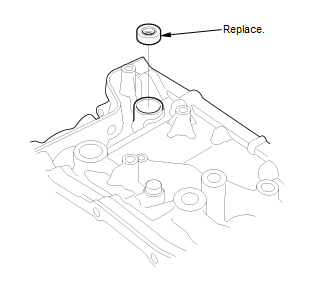

Transmission Housing Control Shaft Oil Seal Replacement: Replacement

Courtesy of HONDA, U.S.A., INC.

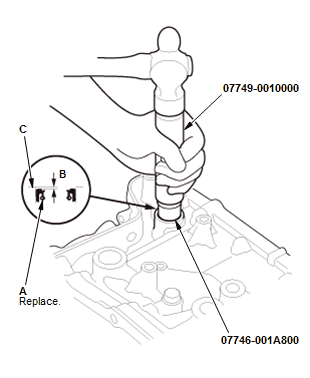

1. Install a new control shaft oil seal (A) to a depth (B) of 0-2.5 mm (0-3.059 in) below the transmission housing surface (C) using the 15 x 135L driver handle and the 22 x 24 mm attachment.
