Transmission Housing Driven Pulley Shaft Bearing Replacement: Removal

1. Driven Pulley Shaft Bearing - Remove

Courtesy of HONDA, U.S.A., INC.

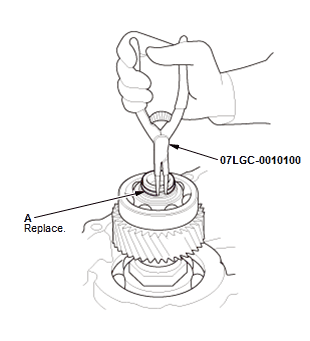

1. Remove the snap ring (A) using the snap ring pliers.

Courtesy of HONDA, U.S.A., INC.

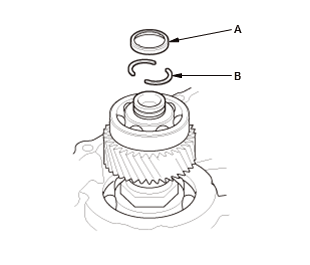

2. Remove the cotter retainer (A)

3. Remove the 25.5 mm cotters (B).

Courtesy of HONDA, U.S.A., INC.

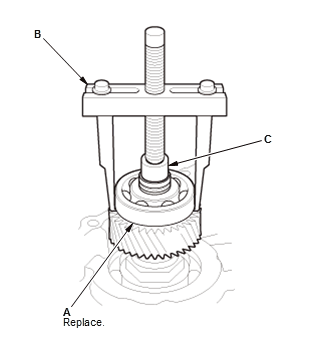

4. Remove the driven pulley shaft bearing (A) using a commercially available puller (B) and a spacer (C).
