Transmission Housing Driven Pulley Shaft Bearing Replacement: Installation

1. Driven Pulley Shaft Bearing - Install

Courtesy of HONDA, U.S.A., INC.

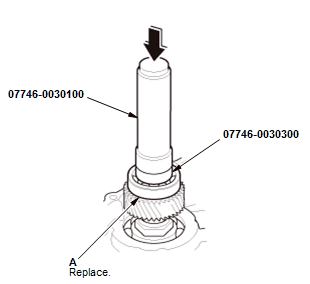

1. Drive a new driven pulley shaft bearing (A) securely using the 40 mm I.D. driver handle and the 30 mm I.D. bearing driver attachment so there is no clearance between the driven pulley shaft bearing and the secondary drive gear.

Courtesy of HONDA, U.S.A., INC.

2. Clean the cotter groove of the driven pulley shaft.

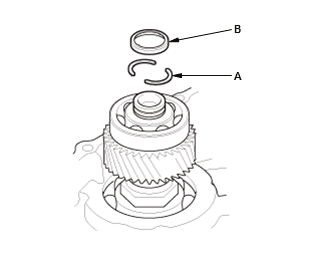

3. Install the 25.5 mm cotters (A).

4. Measure the driven pulley shaft thrust clearance .

5. Install the cotter retainer (B).

Courtesy of HONDA, U.S.A., INC.

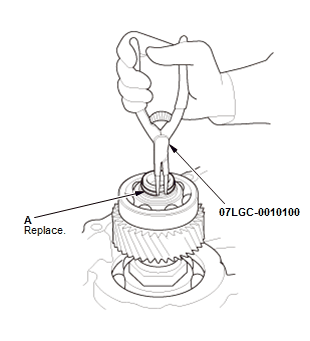

6. Install a new snap ring (A) using the snap ring pliers.

NOTE:

Be careful not to deform the snap ring by opening/closing it excessively.
Make sure the snap ring is firmly installed in the groove.
