Transmission Housing Secondary Drive Gear Removal & Installation: Removal

1. Driven Pulley Shaft Bearing - Remove - Refer to: End Cover Driven Pulley Shaft Bearing Replacement Transmission Housing Driven Pulley Shaft Bearing Replacement
2. Secondary Drive Gear - Remove

Courtesy of HONDA, U.S.A., INC.

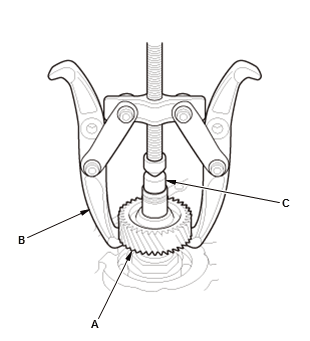

1. Remove the secondary drive gear (A) using a commercially available puller (B) and a spacer (C).
