Transmission Range Switch Removal & Installation: Removal

1. HDS DLC - Connect
2. SCS - Short
1. Turn the vehicle to the OFF (LOCK) mode

2. Jump the SCS line with the HDS, and wait more than 1 minute.
3. Air Cleaner - Remove
4. 12 Volt Battery - Remove
5. Intake Air Pipe - Remove
6. PCM with Bracket - Remove

Courtesy of HONDA, U.S.A., INC.

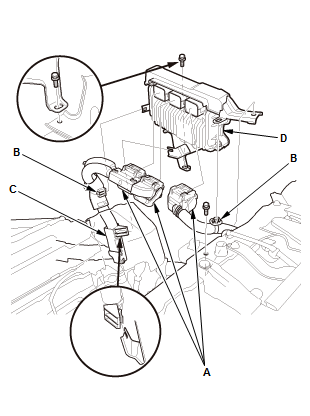

1. Disconnect the connectors (A) .

2. Remove the harness clamps (B) and the harness holder (C).

3. Remove the PCM (D) with the bracket.
7. 12 Volt Battery Base - Remove

Courtesy of HONDA, U.S.A., INC.

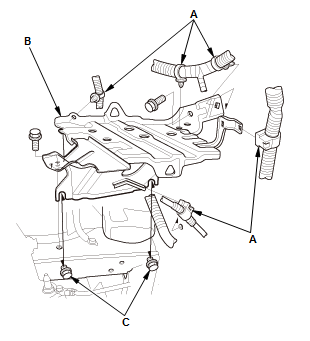

1. Remove the harness clamps (A)

2. Remove the battery base (B).

NOTE: Loosen the bolts (C), without removing them.
8. Engine Wire Harness - Remove

Courtesy of HONDA, U.S.A., INC.

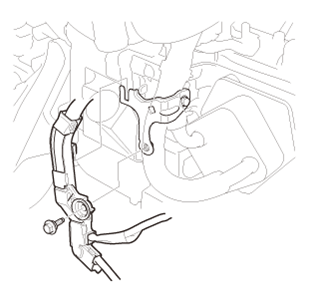

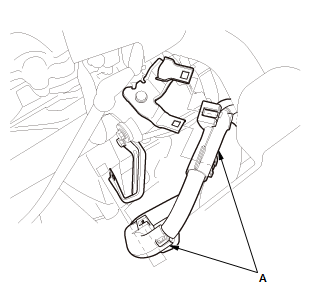

1. Remove the harness clamps (A).

Courtesy of HONDA, U.S.A., INC.

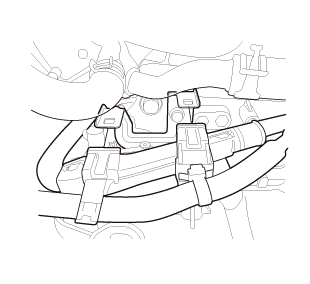

2. Remove the harness holder.

Courtesy of HONDA, U.S.A., INC.
3. Remove the harness holder.

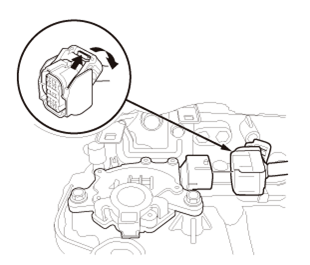

9. Transmission Range Switch Connector - Disconnect

Courtesy of HONDA, U.S.A., INC.
10. Transmission Range Switch - Remove

Courtesy of HONDA, U.S.A., INC.

1. Apply the parking brake

2. Shift the transmission to N position/mode

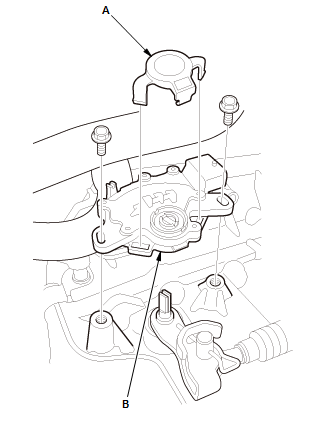

3. Remove the control shaft cover (A)

4. Remove the transmission range switch (B).
