Transmission Range Switch Removal & Installation: Installation

Courtesy of HONDA, U.S.A., INC.

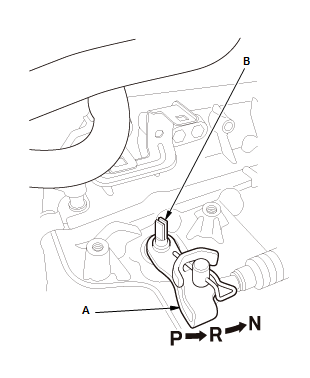

1. Make sure the control lever (A) is in the N position. If necessary, move the control lever to the N position.

NOTE:  Do not use the control shaft (B) to adjust the shift position. If the control shaft tips are squeezed together it will cause a faulty signal or position due to play between the control shaft and the transmission range switch.

Courtesy of HONDA, U.S.A., INC.

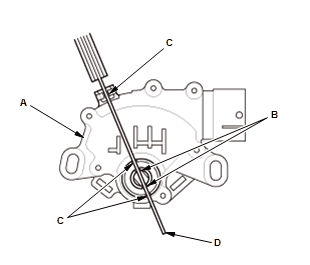

2. Set the transmission range switch (A) to the N position. Align the cutouts (B) on the rotary-frame with the N positioning cutouts (C) on the transmission range switch, then put a 2.0 mm (0.079 in) feeler gauge (D) in the cutouts to hold the transmission range switch in the N position. NOTE:  Be sure to use a 2.0 mm (0.079 in) feeler gauge or equivalent to hold the transmission range switch in the N position.

Courtesy of HONDA, U.S.A., INC.

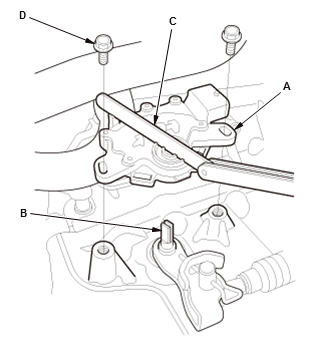

3. Install the transmission range switch (A) gently on the selector control shaft (B) while holding it in the N position with the 2.0 mm (0.079 in) feeler gauge (C) 4. Loosely install the bolts (D).

Courtesy of HONDA, U.S.A., INC.

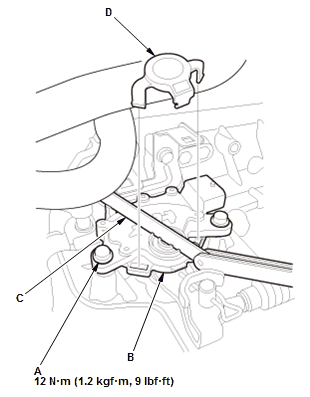

5. Tighten the bolts (A) on the transmission range switch (B) while you continue holding the N position. NOTE:  Do not move the transmission range switch when tightening the bolts 6. Remove the feeler gauge (C) 7. Install the selector control shaft cover (D) 8. Shift the transmission to P position/mode.

Courtesy of HONDA, U.S.A., INC.

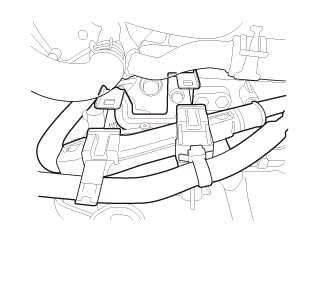

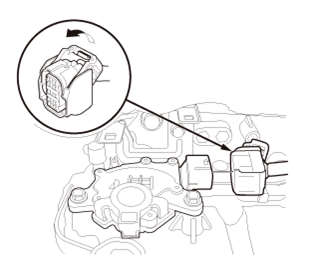

NOTE:  Check the connector for corrosion, dirt, or oil, and clean or repair if necessary.

Courtesy of HONDA, U.S.A., INC.

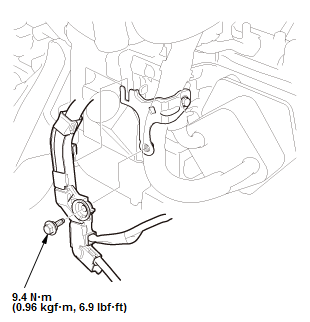

1. Install the harness holder.

Courtesy of HONDA, U.S.A., INC.

2. Install the harness holder.

Courtesy of HONDA, U.S.A., INC.

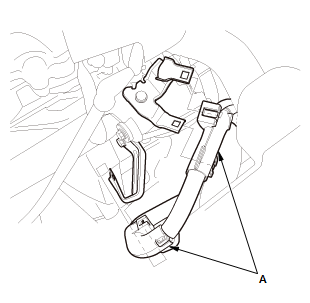

3. Install the harness clamps (A).

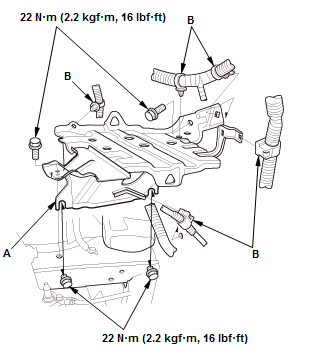

Fig 1: Battery Base With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Install the battery base (A)

2. Install the harness clamps (B).

Courtesy of HONDA, U.S.A., INC.

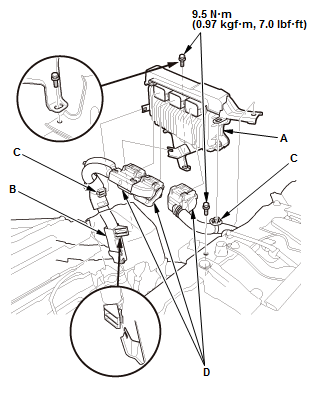

1. Install the PCM (A) with the bracket.

2. Install the harness holder (B) and the harness clamps (C).

3. Connect the connectors (D) .

1. Apply the parking brake.

2. Turn the vehicle to the ON mode.

3. Shift the transmission to each position/mode, and check that the A/T gear position indicator follows the shift lever operation.

4. Start the engine.

NOTE:  Check that the engine starts in P or N position/mode, and does not start in any other positions/modes.

5. Check that the back-up lights come on when the transmission is in R position/mode.

6. Shift the transmission to P position/mode.

7. Turn the vehicle to the OFF (LOCK) mode. When cannot it, adjust the shift cable .
