CVT Differential Backlash Inspection: Inspection

Courtesy of HONDA, U.S.A., INC.

1. Install the driveshaft and the intermediate shaft on the differential, then place the axles on V-blocks

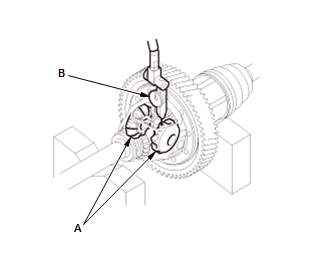

2. Check the backlash of the pinion gears (A) using a dial indicator (B).

3. If the backlash is out of the standard, replace the differential carrier .
