Exploded View
NOTE:
Unless otherwise indicated, illustrations used in the procedure are for AWD/4WD.

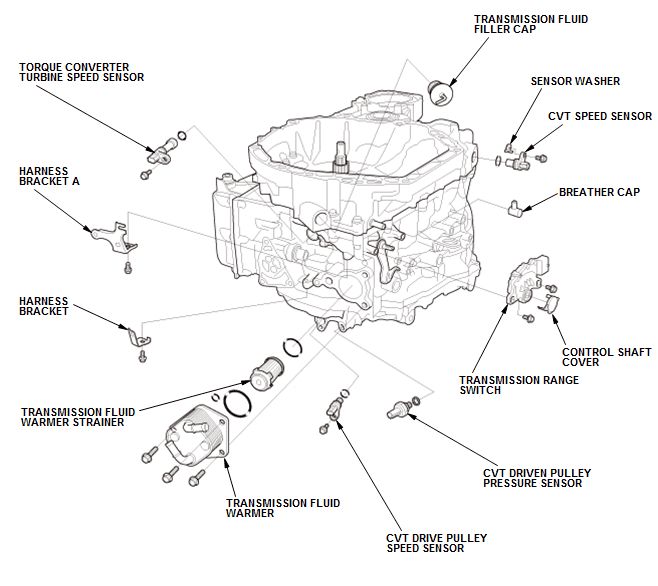

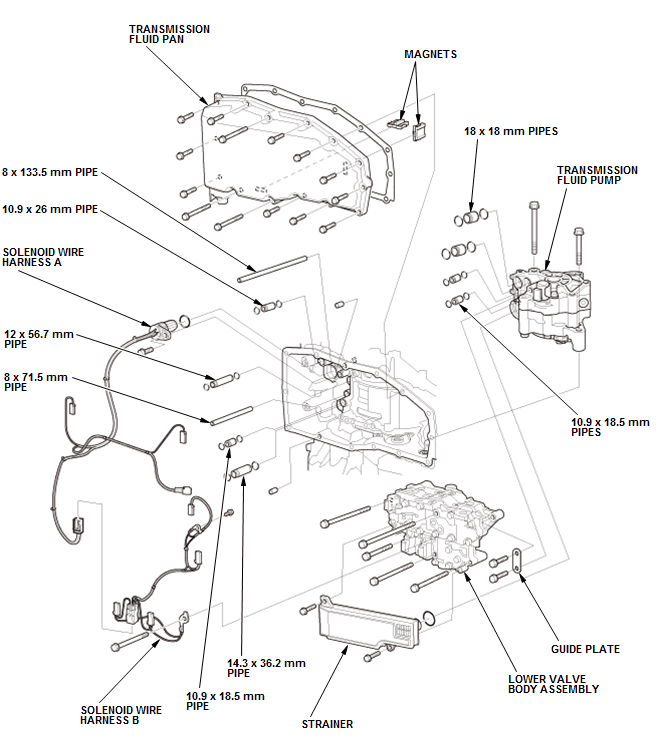

- 1. Transmission Fluid Pan Side - Exploded View
 Courtesy of HONDA, U.S.A., INC.
|

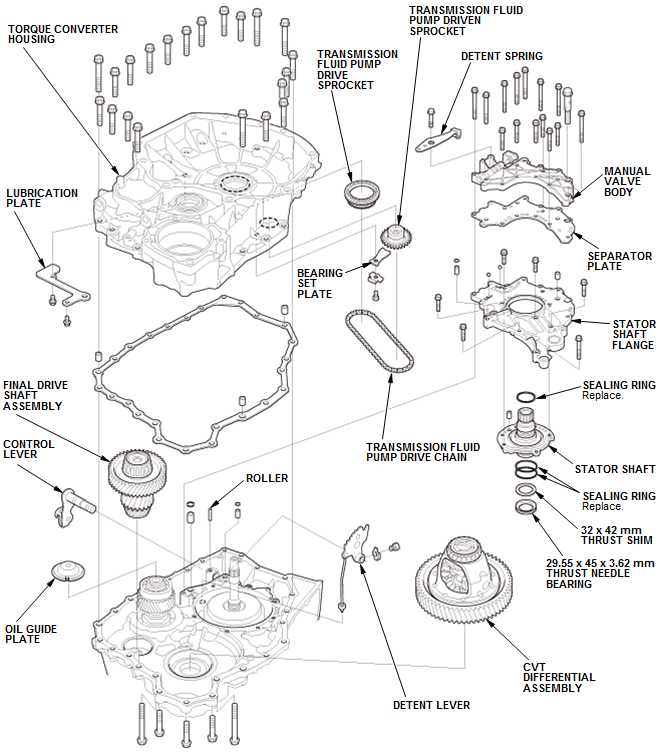

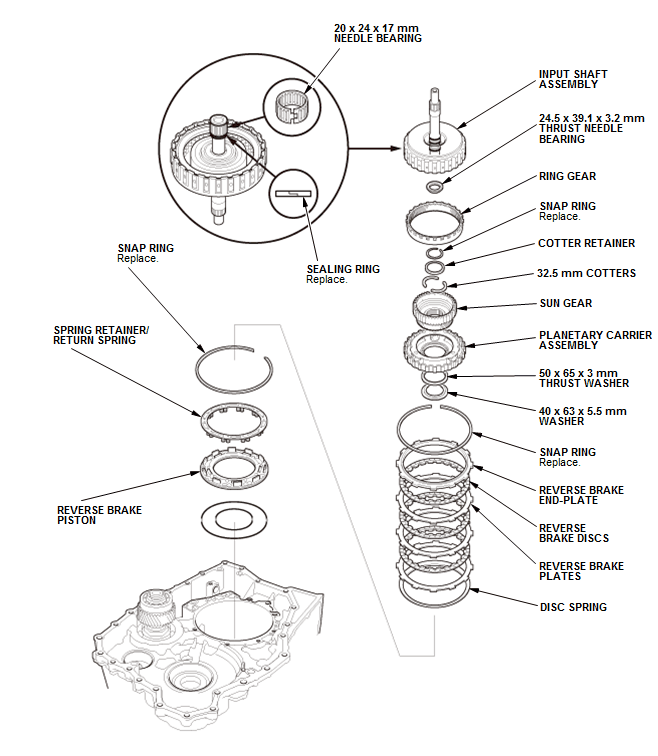

- 2. Torque Converter Housing Side - Exploded View
Exploded View
 Courtesy of HONDA, U.S.A., INC.
|
Exploded View
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

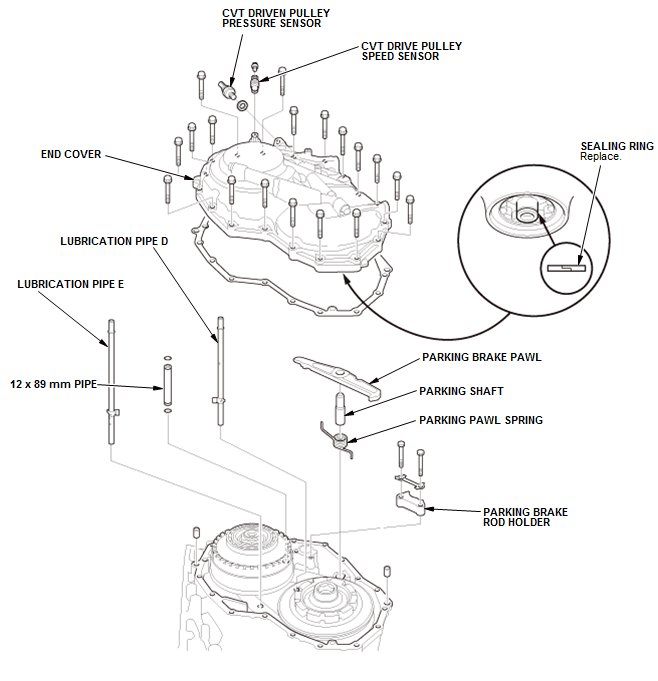

- 3. End Cover Side - Exploded View
Exploded View
 Courtesy of HONDA, U.S.A., INC.
|
