Final Drive Shaft Disassembly and Reassembly: Reassembly

NOTE:

• The tapered roller bearing and the tapered roller bearing outer race should be replaced as a set.
• Adjust the tapered roller bearing preload  after replacing the tapered roller bearing and the tapered roller bearing outer race.
• Apply a light coat of clean transmission fluid on all parts before installation.

• 1. Secondary Driven Gear - Install

  Courtesy of HONDA, U.S.A., INC.

  1. Apply transmission fluid to the splines of the final drive shaft

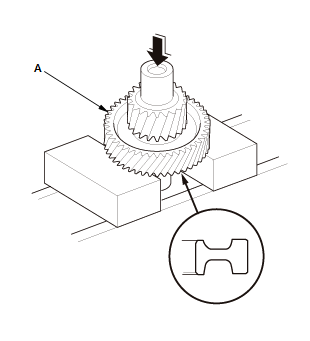

  2. Install the secondary driven gear (A) until it bottoms in the direction shown using a press.

  Courtesy of HONDA, U.S.A., INC.

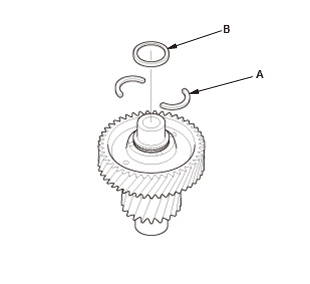

  3. Clean the cotter groove of the final drive shaft 4. Install the 38 mm cotters (A) 5. Install the cotter retainer (B).

• 2. Tapered Roller Bearing - Install

  Courtesy of HONDA, U.S.A., INC.

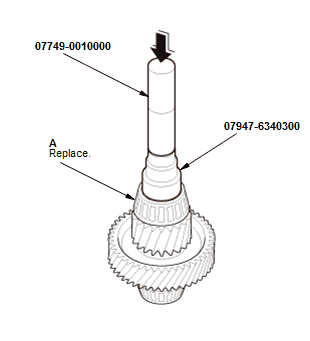

  1. Install a new tapered roller bearing (A) using the 15 x 135L driver handle, the 45 mm attachment, and a press. Press the tapered roller bearing on securely so there is no clearance between the tapered roller bearing and the final drive shaft.

  Transmission Housing Side  Courtesy of HONDA, U.S.A., INC.

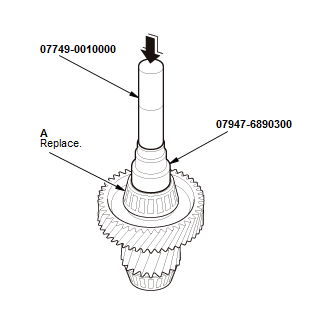

  2. Install a new tapered roller bearing (A) using the 15 x 135L driver handle, the 40 mm attachment, and a press. Press the tapered roller bearing on securely so there is no clearance between the tapered roller bearing and the final drive shaft.
