Continuously Variable Transmission (CVT) - Inspection, Testing & Troubleshooting
>>
Overhaul / Service Information
>>
Transfer Assembly Disassembly and Reassembly (AWD/4WD)
>>
Exploded View
Exploded View
1. Transfer Assembly - Exploded View
Exploded View

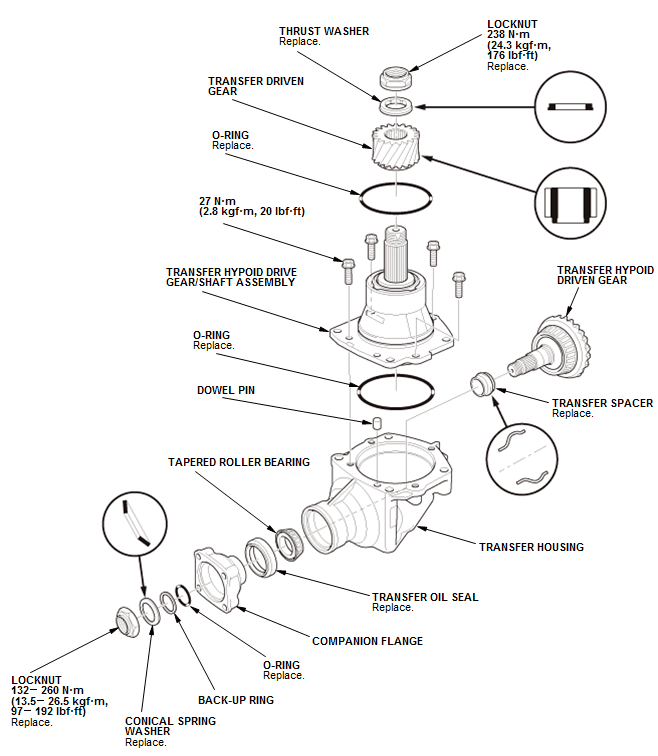

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
