CVT Drive Pulley Pressure Control Solenoid Valve Test: Test

NOTE:  Keep all foreign particles out of the transmission.

• 1. HDS DLC - Connect
• 2. SCS - Short
  • 1. Turn the vehicle to the OFF (LOCK) mode
  • 2. Jump the SCS line with the HDS, and wait more than 1 minute.
• 3. CVT Drive Pulley Pressure Control Solenoid Valve - Internal Resistance Check
  • 1. Disconnect the PCM connector C (51P) .
  • 2. Measure the CVT drive pulley pressure control solenoid valve resistance between the following test points 1 and 2.

  Test point 1	PCM connector C (51P) No. 4
  Test point 2	Body ground

  Standard: 5.0-6.3 Ω

  • If the resistance is within the standard, then the test is complete, and install all removed parts.
  • If the resistance is out of the standard, then go to the next step, and check the CVT drive pulley pressure control solenoid valve operation.
• 4. CVT Drive Pulley Pressure Control Solenoid Valve - Operation Check

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the transmission fluid pan .

  2. Remove the transmission fluid strainer .

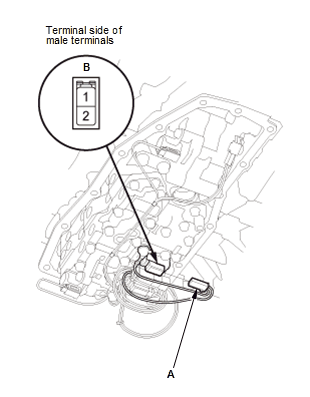

  3. Disconnect the connector (A).

  4. Connect a jumper wire from the positive battery terminal to connector (B) terminal No. 2, and connect another jumper wire from the negative battery terminal to connector terminal No. 1.

  • If a clicking sound is heard, repair the wire between the CVT drive pulley pressure control solenoid valve and the PCM.
  • If no clicking sound is heard, replace the CVT drive pulley pressure control solenoid valve .
• 5. All Removed Parts - Install the parts in the reverse order of removal.
