Shift Solenoid Valve B Test: Test

NOTE:  Keep all foreign particles out of the transmission.

• 1. HDS DLC - Connect
• 2. Shift Solenoid Valve B - HDS Function Test
  • 1. Select Shift Solenoid Valve B in the Miscellaneous Test Menu with the HDS
  • 2. Check that Shift Sol B is indicated to ON and OFF by three seconds.
  • If indicated to ON and OFF, solenoid valve B is OK. The test is complete, disconnect the HDS.
  • If no indicated to ON and OFF, go to the next step.
  • 3. Turn the vehicle to the OFF (LOCK) mode.
• 3. Shift Solenoid Valve B - Internal Resistance Check

  Courtesy of HONDA, U.S.A., INC.

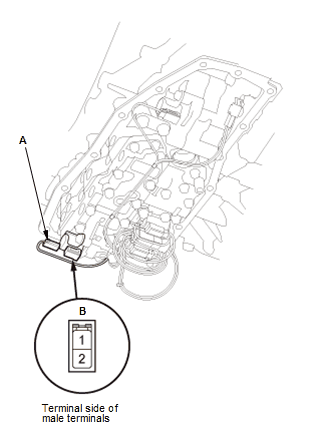

  1. Remove the transmission fluid pan

  2. Disconnect the connector (A)

  3. Measure the shift solenoid valve B resistance between the connector (B) terminal No. 1 and body ground.

  Standard: 10.6-13.5 Ω

  • If the resistance is within the standard, repair the wire between shift solenoid valve B and the PCM.
  • If the resistance is out of the standard, replace shift solenoid valve B .
• 4. All Removed Parts - Install the parts in the reverse order of removal.
