CR-V EX, Eng CD K24W9, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Transmission (CVT) - Inspection, Testing & Troubleshooting
>>
Circuit Diagram
>>

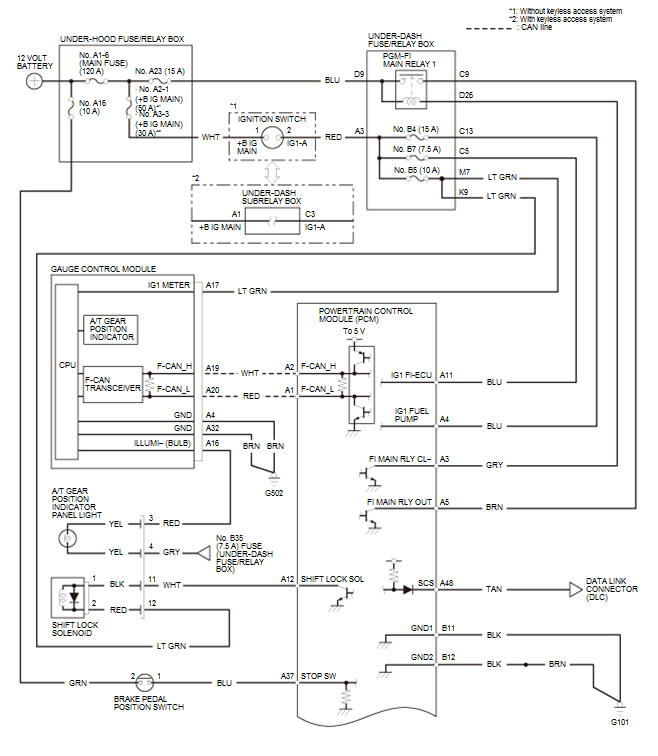

CVT Electronic Control System Circuit Diagram

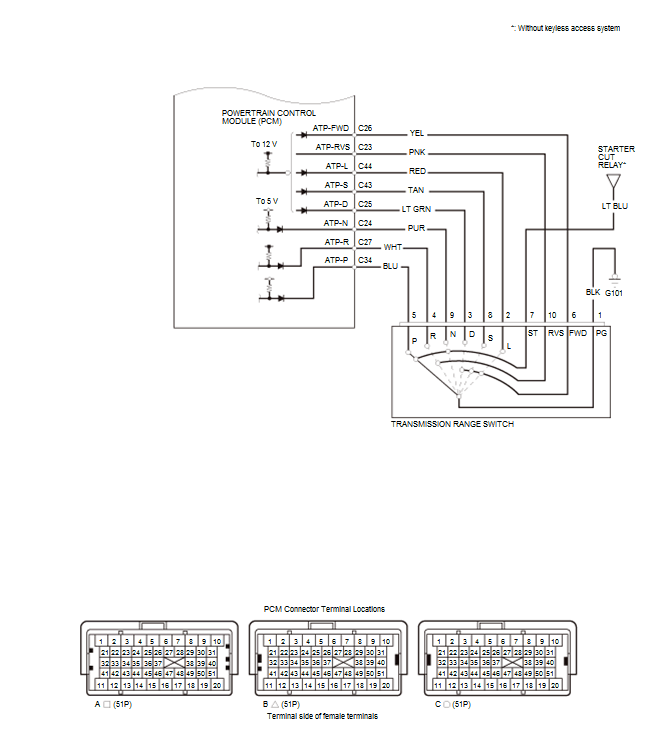

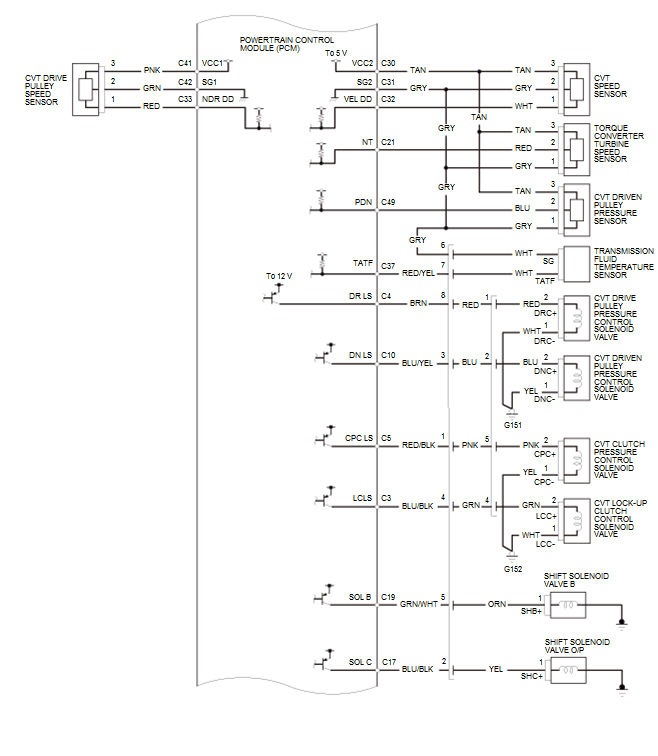

CVT Electronic Control System Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
