Power Mirror Removal and Installation: Replacement

1. Front Door Panel - Remove
2. Power Mirror - Remove

Courtesy of HONDA, U.S.A., INC.

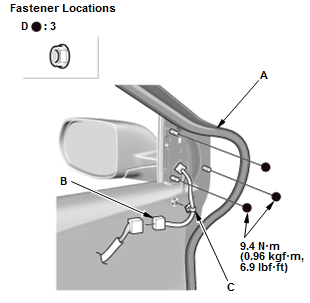

1. Detach the front door opening seal (A) as needed

2. Disconnect the connector (B)

3. Detach the harness clip (C), and remove the nuts (D).

Courtesy of HONDA, U.S.A., INC.

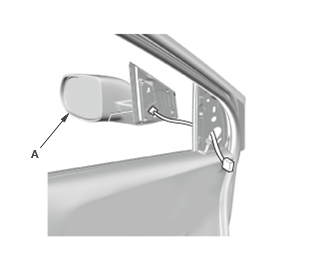

4. Remove the power mirror (A).
3. All Removed Parts - Install - Install the parts in the reverse order of removal.
4. LaneWatch Camera - Aiming (With LaneWatch Camera)
