Rearview Mirror Harness Cover Base Removal and Installation: Installation

Courtesy of HONDA, U.S.A., INC.

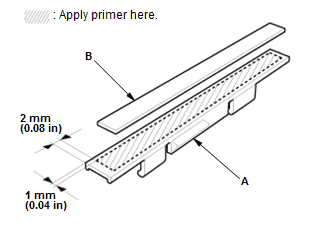

1. If you are reinstalling the original rearview mirror harness cover base (A), scrape off all of the original adhesive tape from the base with a putty knife. Clean the base surface with isopropyl alcohol. Apply primer to the base as shown, and attach the adhesive tape (B) to the base.

Adhesive tape:

Courtesy of HONDA, U.S.A., INC.

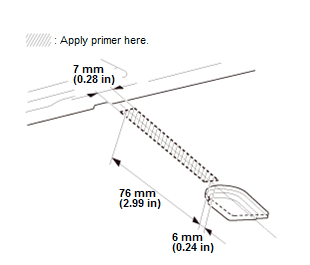

2. Before installing the rearview mirror harness cover base, apply primer to the area where the harness cover base will be installed to the inside face of the windshield. Let the primer dry at least 10 minutes, then attach it to the windshield within 12 hours.

Courtesy of HONDA, U.S.A., INC.

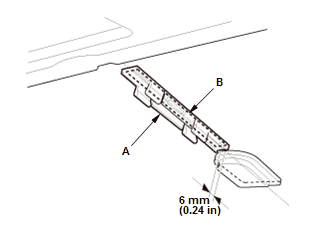

3. Install the rearview mirror harness cover base (A) with the adhesive tape (B) to the inside face of the windshield as shown.
