Removal & Installation

1. Front Bumper - Remove
2. Front Bumper Fog Light Cover - Remove
3. Fog Light - Remove

Courtesy of HONDA, U.S.A., INC.

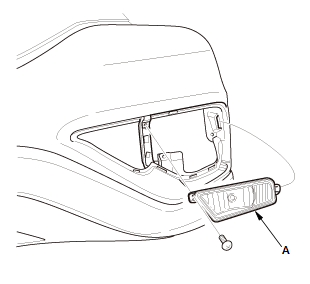

1. Remove the fog light (A) with the bracket.

Courtesy of HONDA, U.S.A., INC.

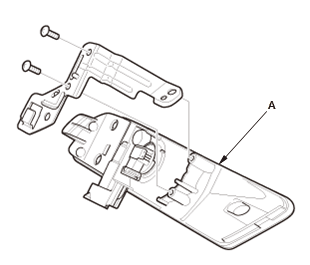

2. Remove the fog light (A) from the bracket.
4. All Removed Parts - Install the parts in the reverse order of removal.
5. Fog Light - Adjustment
