Removal & Installation

1. Splash Shield - Remove
2. A/C Compressor Thermal Protector - Remove

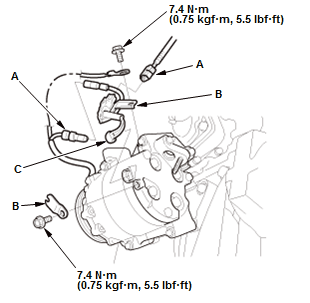

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connectors (A)

2. Remove the holders (B)

3. Remove the thermal protector (C).
3. All Removed Parts - Install

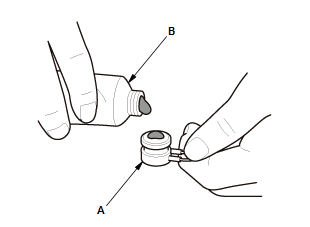

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

NOTE: Replace the thermal protector (A) with a new one, and apply silicone sealant (B) to the bottom of the thermal protector.
