Removal & Installation

NOTE:  Move the coolant reservoir as needed.

• 1. A/C Refrigerant - Recover
• 2. A/C Pressure Sensor - Remove

  Courtesy of HONDA, U.S.A., INC.

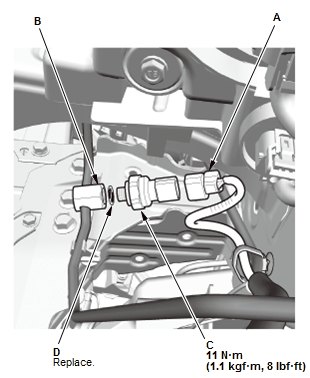

  1. Disconnect the A/C pressure sensor connector (A)

  2. Hold the pressure sensor block (B) with a wrench to prevent damaging the receiver line, then remove the A/C pressure sensor (C) with an O-ring (D).

• 3. All Removed Parts - Install the parts in the reverse order of removal, and note these items:
  • New O-rings should be used at each fitting. Prior to installation, apply a thin coat of the same refrigerant oil used in the A/C compressor . Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
  • Charge the system with the specified amount of R-134a refrigerant .
