Removal & Installation

NOTE:

• Set the MAX COOL position before removing the motor.
• The driver's air mix control motor and the air mix control motor are the same parts.

• 1. Driver's Dashboard Undercover - Remove - Refer to: Passenger's Dashboard Undercover Removal and InstallationDriver's Dashboard Undercover Removal and Installation
• 2. Air Mix Control Motor - Remove

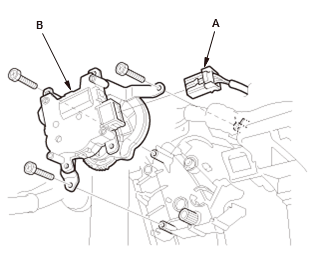

  Courtesy of HONDA, U.S.A., INC.

  1. Disconnect the connector (A)

  2. Remove the air mix control motor (B).

• 3. All Removed Parts - Install

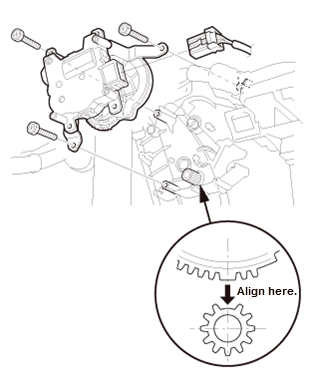

  Courtesy of HONDA, U.S.A., INC.

  1. Install the parts in the reverse order of removal, and note these items:

  • Align the air mix control motor with the gear.
  • After installation, make sure the motor runs smoothly.
