Removal & Installation

1. Glove Box Frame - Remove
2. Blower Motor - Remove

Courtesy of HONDA, U.S.A., INC.

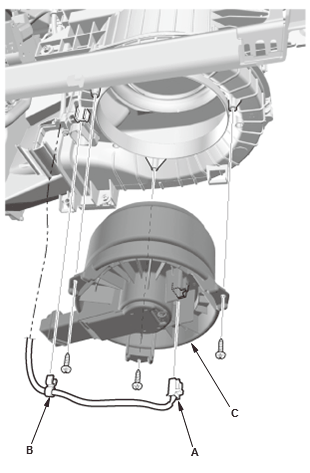

1. Disconnect the connector (A)

2. Detach the harness clip (B)

3. Remove the blower motor (C).
3. All Removed Parts - Install the parts in the reverse order of removal.
