Removal & Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. Passenger's Heater Duct - Remove
• 2. Power Transistor - Remove

  Courtesy of HONDA, U.S.A., INC.

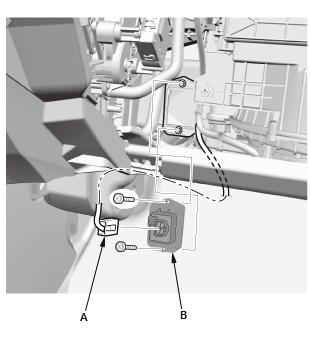

  1. Disconnect the connector (A)

  2. Remove the power transistor (B).

• 3. All Removed Parts - Install the parts in the reverse order of removal.
