Removal & Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. Passenger's Dashboard Undercover - Remove - Refer to: Passenger's Dashboard Undercover Removal and InstallationDriver's Dashboard Undercover Removal and Installation
• 2. Glove Box - Remove
• 3. Glove Box Frame - Remove

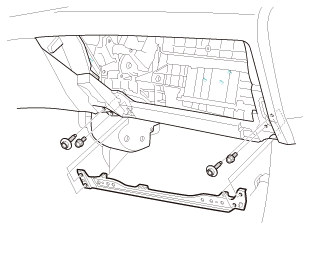

  Courtesy of HONDA, U.S.A., INC.

• 4. Passenger's Heater Duct - Remove

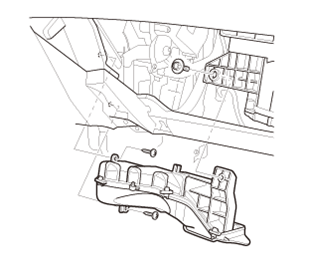

  Courtesy of HONDA, U.S.A., INC.

• 5. Cross Brace - Remove

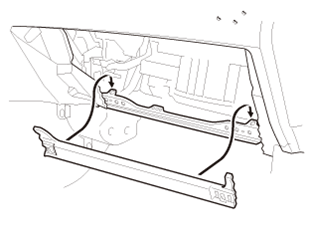

  Courtesy of HONDA, U.S.A., INC.

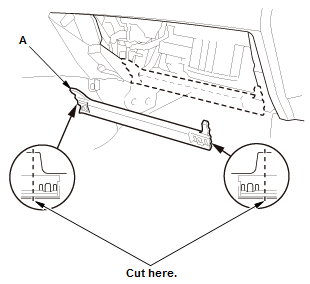

  1. Cut the cross brace (A) in the glove box opening with diagonal cutters in the area shown, and remove it.

  NOTE:  Retain the cross brace to be reinstalled later.

• 6. Blower Unit - Remove

  Courtesy of HONDA, U.S.A., INC.

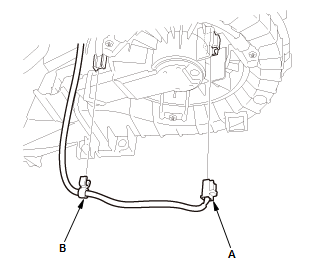

  1. Disconnect the connector (A)

  2. Detach the harness clip (B).

  Courtesy of HONDA, U.S.A., INC.

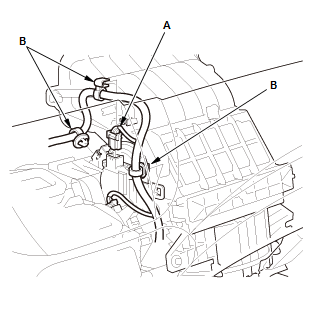

  3. Disconnect the connector (A) 4. Detach the harness clips (B).

  Courtesy of HONDA, U.S.A., INC.

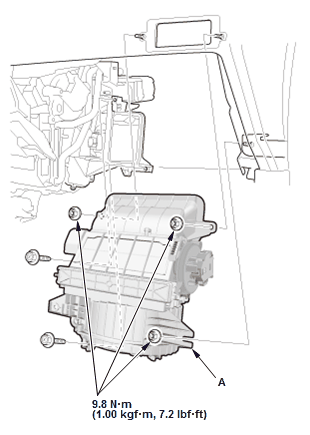

  5. Remove the blower unit (A).

• 7. All Removed Parts - Install

  Courtesy of HONDA, U.S.A., INC.

  1. Install the parts in the reverse order of removal.

  NOTE:  Install the cross brace after glove box frame install.
