Removal & Installation

NOTE:  If you are only removing the dial(s), it is not necessary to remove the climate control unit assembly.

• 1. Driver's Inner Dashboard Trim Panel - Remove

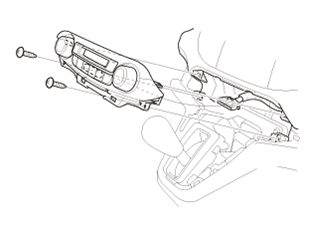

• 2. Climate Control Unit Assembly - Remove

  Courtesy of HONDA, U.S.A., INC.

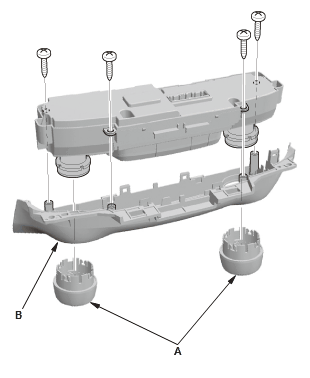

• 3. Climate Control Unit Panel - Remove

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the dials (A)

  2. Remove the climate control unit panel (B).

• 4. All Removed Parts - Install the parts in the reverse order of removal.

  NOTE:  Run the self-diagnostic function to confirm that there are no problems in the system.
