Removal & Installation

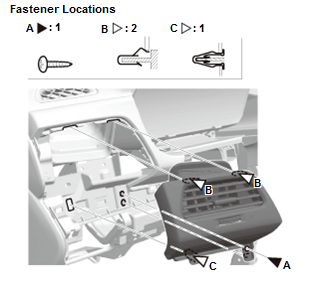

Inner Vent

• 1. Both Inner Vents - Remove

  Courtesy of HONDA, U.S.A., INC.

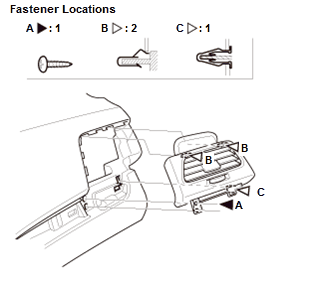

  Driver's Outer Vent

• 1. Driver's Dashboard Panel - Remove
• 2. Driver's Outer Vent - Remove

  Courtesy of HONDA, U.S.A., INC.

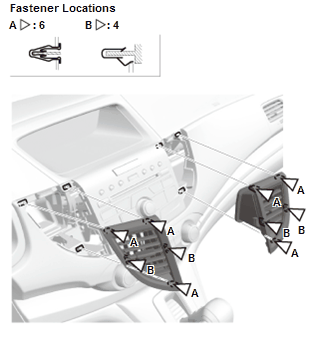

  Passenger's Outer Vent

• 1. Shift Lever Panel - Remove
• 2. Passenger's Dashboard Trim Panel - Remove
• 3. Passenger's Outer Vent - Remove

  Courtesy of HONDA, U.S.A., INC.

• 4. All Removed Parts - Install the parts in the reverse order of removal.
