Removal & Installation

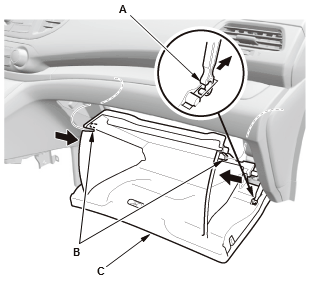

1. Glove Box - Move

Courtesy of HONDA, U.S.A., INC.

1. Detach the glove box damper (A), and release both glove box stops (B) by pushing them in, then let glove box (C) hang down.

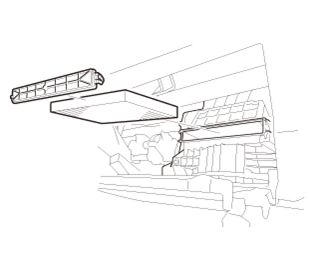

2. Dust and Pollen Filter - Remove

Courtesy of HONDA, U.S.A., INC.
3. All Removed Parts - Install the parts in the reverse order of removal.
NOTE: Make sure there is no air leaking out of the blower unit.
4. Maintenance Minder - Reset (With Maintenance Minder System)
1. If the Maintenance Minder required to replace the dust and pollen filter, reset the Maintenance Minder with the gauge . If the Maintenance Minder did not require to replace the dust and pollen filter, reset the Maintenance Minder with the HDS .
