Removal & Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. Evaporator Expansion Valve - Remove
• 2. Evaporator Core - Remove

  Courtesy of HONDA, U.S.A., INC.

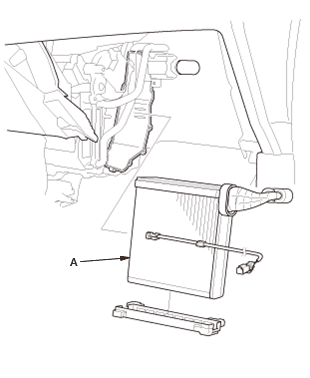

  1. Carefully pull out the evaporator core (A) without bending the lines.

• 3. All Removed Parts - Install the parts in the reverse order of removal.

  NOTE:  Carefully install the evaporator core without bending the lines.
