Removal & Installation
- 1. Evaporator Core - Remove
- 2. Evaporator Temperature Sensor - Remove

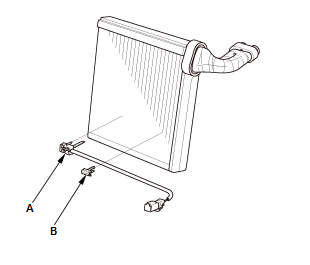

1. Remove the evaporator temperature sensor (A) and the clip (B).
- 3. All Removed Parts - Install
1. Install the parts in the reverse order of removal.

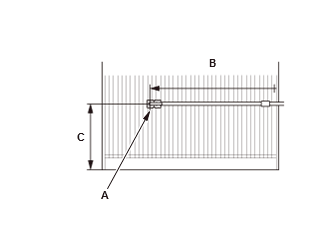

NOTE: Install the evaporator temperature sensor (A) in the evaporator core, and note these items: Refer to the following position list.
- New Evaporator Core: Set the sensor into the factory preset position.
- Original Evaporator Core: Set the sensor into the new position because the fin may be deforming by the previous installation.
B C Row * mm (in) Factory Preset Position 30 th 122 (4.80) New Position 29 th *: From the passenger's side
